Single Mode 1X2 FBT Optical Coupler SC APC ABS 3m 50/50 1310/1550nm
Description:
FBT OPTICAL Coupler is a splitter which based on fused biconical
taper technology. It is widely accepted and used in passive optical
networks (PON) solution. FBT coupler is a traditional technology
that two fibers are typically twisted and fused together while the
assembly is being elongated and tapered.
a wide breadth of FBT Coupler splitters, including Singlemode
Standard Coupler, Dual Window Coupler, Three Window Coupler, Wide
Band Coupler, PM Fused Coupler and All Band Coupler with low
insertion loss and high performance. These Fused couplers are
available with coupling ration ranging from 1:99 to 50:50. Most
important, customized specs are also available.
Multimode Fibrain splitters are available with split ratio ranging
from 1x2 up to 1x16 and also as 2x2, 2x4 and 3x8 as well as
asymmetric versions (such as 10/90, 20/80, 30/70, 40/60, 10/20/70,
15/15/70, 10/10/80, 40/40/20, 10/10/10/70). Fibrain MMF PLC
splitters are compatible with the standard telecom multimode
fibers, from OM1, through OM2 and OM3 to OM4.
Features:
Ruggedized 2mm Jacket
Length: 1.0 Meter Legs
ABS Box Type Module
Plug and Play Ready
Low Insertion Loss
Low Polarization Dependent Loss
High attenuation uniformity
Low excess loss
Uniform Power Splitting
Rugged Package
Excellent Environmental & Mechanical Stability
NX4(n=1,2,4) NX8(n=1,2,8) port ratios are available.
Applications:
Long-haul Telecommunications
Digital, Hybrid and AM-Video Systems
High Speed Local Area Networks
CATV System
Specification:
| 1X2 Single Mode FBT Coupler |
| Mode | | | simplex,duplex |
| Connector Type | | | FC , LC , SC , ST |
| Polishing | | | APC/UPC |
| Bandwidth | nm | | ±20,±40 |
| Coupling Ratio | | | 50/50 | 40/60 | 30/70 | 20/80 | 10/90 |
| Grade | | | P | A | P | A | P | A | P | A | P | A |
| Insertion Loss | dB | Max | 3.4 | 3.6 | 4.4/2.6 | 4.6/2.8 | 5.7/1.9 | 5.9/2.1 | 7.5/1.2 | 8.0/1.3 | 11.0/0.65 | 12.0/0.8 |
| Uniformity | dB | Max | 0.5 | 0.7 | / | / | / | / | / | / | / | / |
| PDL | dB | Max | 0.15 | 0.2 | 0.2 | 0.25 | 0.15 | 0.2 | 0.2 | 0.25 | 0.2 | 0.3 |
| Return Loss | dB | | ≥50 |
| Operating Temperature | ℃ | | -20～75 |
| Fiber Length | | | 0.5M,1M,customize |
| Fiber Diameter | | | 0.9MM, 2.0MM 3.0MM |
| Fiber Type | | | G652D G657A |
| Other Type | | | 1X2 1X4 1X8 1X16 1X32 2X2 2X4 2X8 2X16 2X32 |

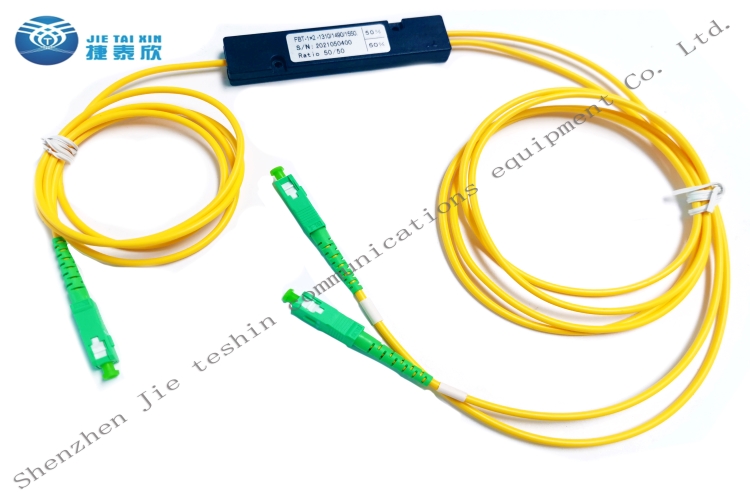

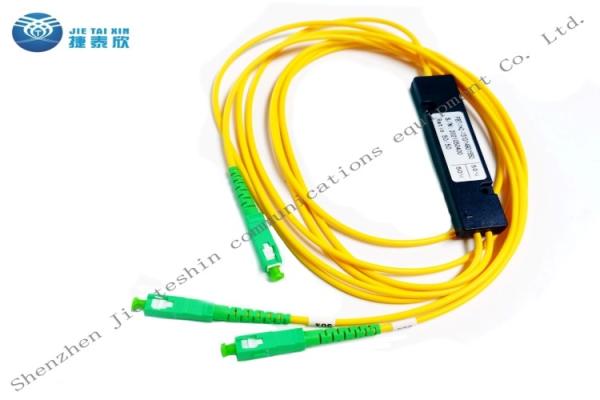

Product Show:
Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have
detail requirements.
2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order
quantity.
3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on
customer's account.
4. How about your price?
Otop: We are supplying products with very competitive price based
on good performance.
5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are
customized. Our own logo and own design are welcome. We will
produce
