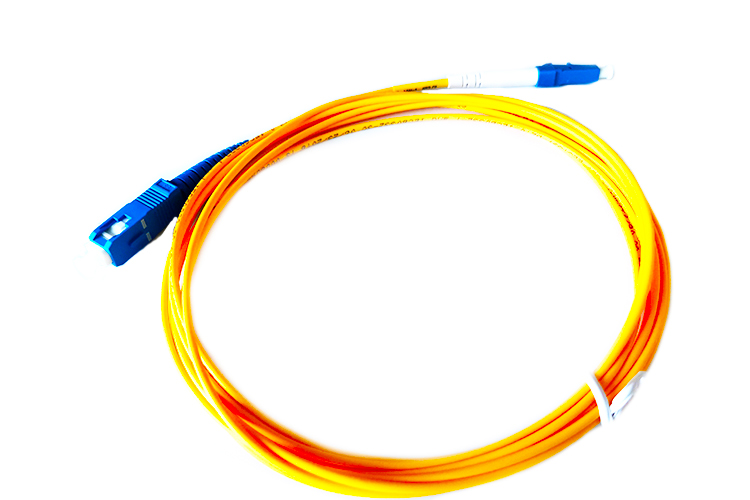

SC UPC-LC UPC 2.0mm 3m Fiber Optic Patch Cable Optical Fiber
Communication Systems
Products description:
Duplex fiber patch cords are produce according to international
standard, which are available in OS1/OS2, OM1, OM2, OM3, OM4 or OM5
exceed requirements of ANSI/TIA-568.3-D.Fiber Optic Patch cords are ultra reliable components featuring low
insertion loss and return loss.Extensive range of fiber patch
cables are terminated with state-of-the-art connectors and
available in any combination of ST, SC, LC and MTRJ with PC, UPC or
APC polish types.
What is simplex patch cord?
Fiber patch cord, also known as fiber patch cable or fiber jumper
cable, is a fiber optic cable terminated with fiber optic
connectors on its both ends. ... Simplex fiber patch cord has one
fiber and one connector on each end. Both single mode and
multi-mode simplex optic patch cords have only one single strand of
fiber.
Features
1. Compliant with international standard such as ANSI,Bellcore,
TLA/EIA, IEC,also according with the industrial standards of
Telecom in China
2. Realize the activelink of optic fiber transmission
3. Low insertion loss and high return loss
4. Excellent repeatability and interchangeability
Advantage
1. Professional manufacturer, 100% tested
2. Customers solutions in days, not weeks
3. Warmly services with careful attentions
4. Can provide your specific inquiry within 24 hours
5. Save much costs, bring more benefit for customer to expand
business
Applications:
Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network(OAN)
Active device termination
Fiber optics data transmission(FODT)
Test Equipment
CATV
Parameter:
| END FACE TYPE | PC UPC AND APC |
| FIBER TYPE | SM(G652 G655 G657) MM(OM1-OM5) |
| CABLE DIAMETER | 0.9 2.0 3.0 OR CUSTOMIZED(SIMPLEX/ DUPLEX) |
| INSERTION LOSS | ≤0.3DB |
| RETURN LOSS | UPC SM≥50DB APC SM≥60DB PC MM≥35DB |
| REPEATABILITY | ≤0.1 |
| DURABILITY | ≤0.2DB |
| INTERCHANGEABILITY | ≤0.2DB |
| TENSILE STRENGTH | 0.9MM＞5N 2.0/3.0＞70N |
| OPERATING TEMPERATURE | -20~70 |
| STORAGE TEMPERATURE | -40~80 |
| QUTER SHEATH MATERIAL | PVC LSZH PU |
| BENDING RADIUS (STATIC/DYNAMIC) | 10D/20D |
| LENGRTH | CUSTOMIZED |
Product Show
Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have
detail requirements.
2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order
quantity.
3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on
customer's account.
4. How about your price?
Otop: We are supplying products with very competitive price based
on good performance.
5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are
customized. Our own logo and own design are welcome. We will
produce
