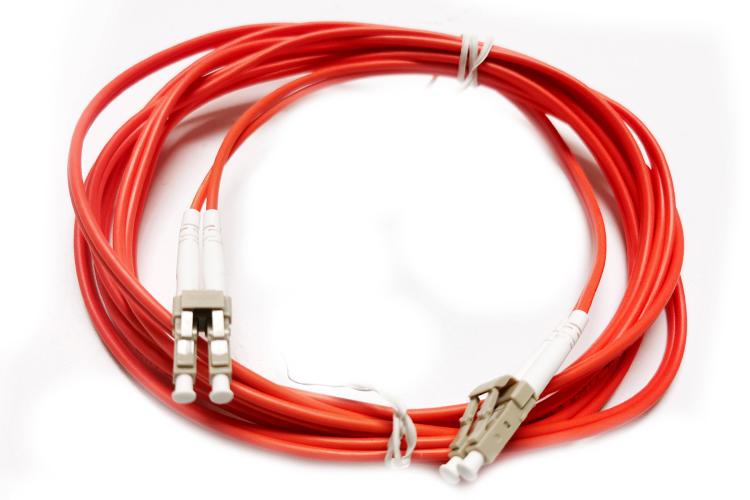

MultiMode Duplex LC 3MM 3m Fiber Optic Patch Cable Good Temperature
Stability
Products description:
Fiber Optic Patch Cord is important of optical network.they have
same or different connectors which are installed on the end of
fiber optic cable. The Fiber Optic Patch Cord series comes with a
comprehensive collection of lengths and connectors to fulfill your
demand for the deployment.
What is duplex patch cord?
A duplex fiber patch cord consists of two strands of glass or
plastic fiber which are typically found in a tight-buffered and
jacketed "zipcord" construction format. The duplex fiber is most
often used for duplex communication between devices where a
simultaneous and separate transmit and receive are required.
Duplex cable consists of two fibers, usually in a zipcord
(side-by-side) style. Use duplex multimode or singlemode fiber
optic cable for applications that require simultaneous,
bi-directional data transfer. Workstations, fiber switches and
servers, fiber modems, and similar hardware require duplex cable.
Features:
- Compliant with international standard such as ANSI,Bellcore,
TLA/EIA, IEC,also according with the industrial standards of
Telecom in China
- Realize the activelink of optic fiber transmission
- Low insertion loss and high return loss
- Excellent repeatability and interchangeability
- Excellent Repeat-ability, exchange-ability, wear resistance and
stability
- Good Temperature Stability
- Strong Tensile Performance
- Environmentally Friendly
Advantage
1. Professional manufacturer, 100% tested
2. Customers solutions in days, not weeks
3. Warmly services with careful attentions
4. Can provide your specific inquiry within 24 hours
5. Save much costs, bring more benefit for customer to expand
business
Specification:
| END FACE TYPE | PC UPC AND APC |
| FIBER TYPE | SM(G652 G655 G657) MM(OM1-OM5) |
| CABLE DIAMETER | 0.9 2.0 3.0 OR CUSTOMIZED(SIMPLEX/ DUPLEX) |
| INSERTION LOSS | ≤0.3DB |
| RETURN LOSS | UPC SM≥50DB APC SM≥60DB PC MM≥35DB |
| REPEATABILITY | ≤0.1 |
| DURABILITY | ≤0.2DB |
| INTERCHANGEABILITY | ≤0.2DB |
| TENSILE STRENGTH | 0.9MM＞5N 2.0/3.0＞70N |
| OPERATING TEMPERATURE | -40~80 |
| STORAGE TEMPERATURE | -40~80 |
| QUTER SHEATH MATERIAL | PVC LSZH PU |
| BENDING RADIUS (STATIC/DYNAMIC) | 10D/20D |
| LENGRTH | CUSTOMIZED |
Product Show
Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have
detail requirements.
2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order
quantity.
3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on
customer's account.
4. How about your price?
Otop: We are supplying products with very competitive price based
on good performance.
5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are
customized. Our own logo and own design are welcome. We will
produce
