Description

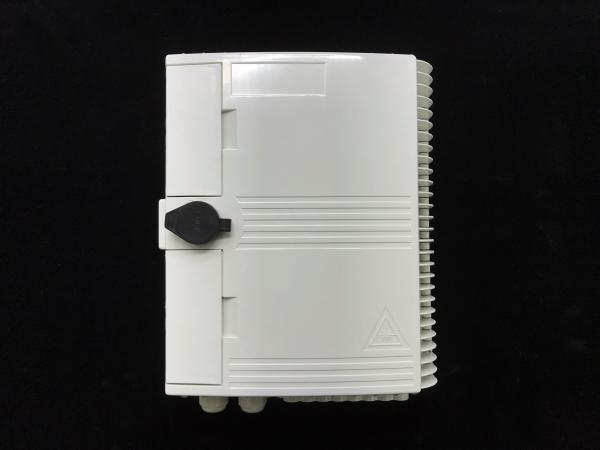

FTTH Box Our terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.

This distribution box terminates outside optical cables with up to 24 fibers; it allocates 24 adapters for connecting with max 24 drop cable pigtails, it is also suitable for using with mini splitters. The box works under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTH networks.

Features
- Easy installation

- Easy slick-in cover mounting
- This box could be used for wall-mounted applications;

- Suit for Outdoor & Indoor.

- Waterproof, Anti-UV, Ultra violet resistant and rainfall resistant.

- Light weight, small cubage, small installation size, reliable sealing.

- Suitable for many type of modules installation,widely used in the area of cable wiring sub-system.
- Any logo can be printed on the box according to customer requirements

- Manage fibers in a reasonable fiber radius condition.

- Suitable for the fusion splice or mechanical splice

- Efficient cable management

Application:

FTTH, FTTB, FTTC

Telecommunication Network

Local Area Network

Specification

1). Environmental Requirement

Working temperature:-40℃~+85℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KPa~106Kpa

2). Main Technical Data

Insertion loss:≤0.2dB

UPC return loss:≥50dB

APC return loss:≥60dB

Life of insertion and extraction:>1000 times

3). Thunder-proof Technical Data

The grounding device is isolated with the cabinet, isolation resistance is no less than2000MΩ/500V(DC);IR≥2000MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover; U≥3000V
