Introduction
The distribution box can be used as a termination point for the
feeder cable to connect with drop cable in FTTx communication
network system. The fiber splicing, splitting, distribution can be
done in this box, and meanwhile it provides solid protection and
management for the FTTx network building.
This distribution box terminates outside optical cables with up to
12 fibers; it allocates 12 adapters for connecting with max 12 drop
cable pigtails, it is also suitable for using with mini splitters.
The box works under both indoor and outdoor environments. It is a
perfect cost-effective solution-provider in the FTTH networks.
Characteristics
- Accommodation of 12 adapters
- Easy slick-in cover mounting
- Hinged and detachable splice cassette.
- Suitable for many type of modules installation,widely used in the
area of cable wiring sub-system.
- Embedded box , installation and removal easily with a protective
door,proof dust.
- Any logo can be printed on the box according to customer
requirements
- whether in visible or flushed. Customers can choose the modules
which you like.
- All the modules are free from weld;
Features
Applicable in FTTH project
Suitable for corridor, basement, room and building's outer walls
application
With the function of mechanical splice, fusion splice, light
splitting, wiring distributions
Industry Standard User Interface, be made of high impact plastic
Anti-UV, Ultra violet resistant and rainfall resistant
Installation:Wall hanging:
1 According to the backplane mounting hole’s distance, hit 4
mounting holes on the wall, and knock the plastic expansion sleeve.
2 Fixed the box on the wall with M8 * 40 screws.
3 Position the upper end of the box into the wall hole, and then
use M8 * 40 screws fix the box on the wall.
4 Check the box installation, close the door after qualified. In
order to prevent rainwater from entering the box, the box should be
tightened by a key column.
5 Insert the outdoor optical cable and butterfly type optic cable
according to the construction requirements.

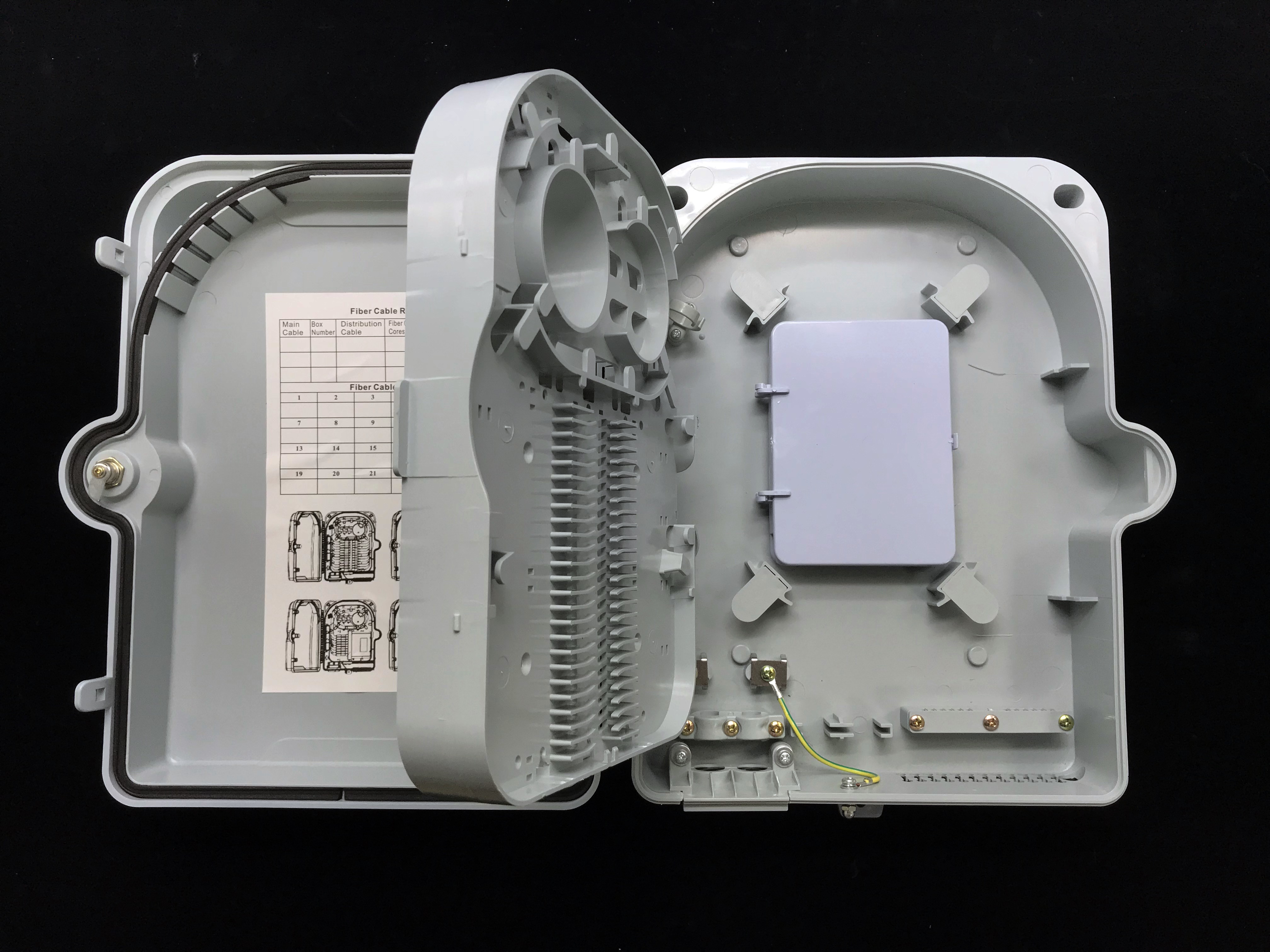

Product show
