Compact Size Fiber Optic Cable Joint Box For Telecommunication Network 1x8 Type

Ask Lasest Price
Certification :	ISO 9001
Price :	Negotiable
Delivery Time :	7-10 Days
Payment Terms :	30% deposit , Balance due within 7 days from date of shipment bill of lading
Supply Ability :	50000 Monthly Output

Add to Cart

Product Details
Company Profile

Compact Size Fiber Optic Cable Joint Box For Telecommunication Network 1x8 Type

Introduction

This distribution box terminates outside optical cables with up to 8 fibers; it allocates 8 adapters for connecting with max 8 drop cable pigtails, it is also suitable for using with mini splitters. The box works under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTH networks.

Characteristics

1) Water-proof design with IP-66 Protection level.
2) Integrated with splice cassette and cable management rods.

3) Manage fibers in a reasonable fiber radius condition.

4) Easy to maintain and extend the capacity.

5) Fiber bend radius control more than 40mm

6) Suitable for the fusion splice or mechanical splice

7) 1*8 Splitter can be installed as an option.

8) Efficient cable management

9) 8 ports cable entrance for drop cable.

Application:

FTTH, FTTB, FTTC

Telecommunication Network

Local Area Network

CATV

Specification

ITEM	Fiber Optic Distribution Box
Dimensions(mm)	LxWxH 21017548mm
Cable input capacity	Max. ports (Max. dia : 16 mm)
Cable output capacity	Max. ports (Max. dia : 16mm)
Max.capacity	8 cores
Opration Temperature	-40°C—+85°C
Tensile Strengh	≥450Kg/c㎡
Impact Strengh	35Kg cm/cm (nomar temp.)
Impact Strengh	10Kg cm/cm(-30°C)
Flexural Strengh	≥450Kg/c㎡

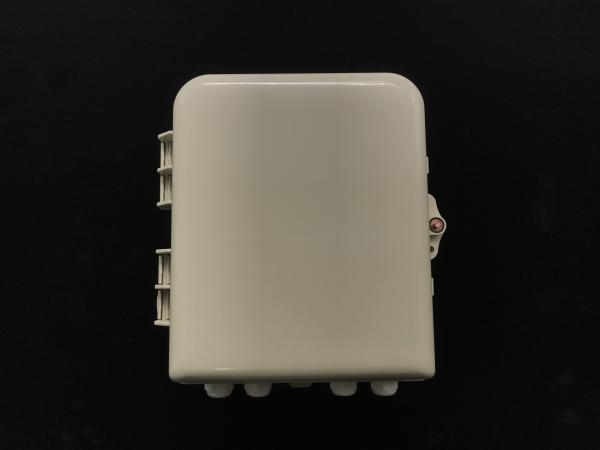

Product Show
