2X32 FC UPC PLC Fiber Splitter 1260NM to1650NM Excellent Environmental Stability

2X32 FC UPC PLC Fiber Splitter 1260NM to1650NM Excellent Environmental Stability

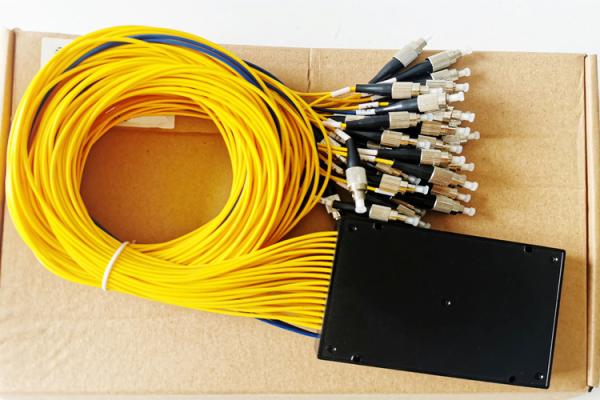

PRODUCT SHOW:

Description

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets.

Features:

Low Insertion loss
Wide Operating Wavelength: From 1260nm to 1650nm
Excellent Environmental & Mechanical Stability
High Reliability and Stability
Low PDL (Polarization Dependent Loss)
Compact Design

Applications:

FTTX (FTTB, FTTH, FTTC) Systems
Passive Optical Network (PON)
Cable Television (CATV)
Optical Signal Distribution

Our service:

We could print your company name on the cable.
Standard and customized OEM products from small to large quantity are welcome.
Compliance with global environmental industry with RoHS and SGS standards.
All products are 100% fully tested by our technical expertise.

Specification:

1 x N
Parameter		Unit	1 x 2	1 x 4	1 x 8	1 x 16	1 x 32	1 x 64
Insertion Loss	Max.	dB	3.8	7.0	10.4	13.9	17.2	22.0
Channel Uniformity	Max.	dB	0.6	0.5	0.5	1.4	1.6	2.5
Polarization Dependent Loss	Max.	dB	0.2	0.3	0.3	0.3	0.3	0.3
Wavelength Dependent Loss	Max.	dB	0.3	0.3	0.3	0.3	0.3	0.3
Temperature Dependent Loss	Max.	dB	0.5	0.5	0.5	0.5	0.5	0.5
Connector Dependent Loss	Max.	dB	0.2	0.2	0.2	0.2	0.2	0.2
Operating Wavelength	Min.-Max	nm	1250 ~ 1650
Return Loss	Min.	dB	55
Directivity	Min.	dB	55
Operating Temperature		°C	-40 ~ + 85
Storage Temperature		°C	-40 ~ + 85
Maximum Input Power	Max.	mW	500
Fiber Type		-	ITU G.652D or G.657A

2 x N
Parameter		Unit	2 x 2	2 x 4	2 x 8	2 x 16	2 x 32	2 x 64
Insertion Loss	Max.	dB	4.0	7.3	10.7	14	17.5	22.5
Channel Uniformity	Max.	dB	0.8	1.0	1.0	1.5	1.8	3.0
Polarization Dependent Loss	Max.	dB	0.2	0.3	0.3	0.3	0.3	0.4
Wavelength Dependent Loss	Max.	dB	0.3	0.3	0.3	0.3	0.3	0.3
Temperature Dependent Loss	Max.	dB	0.5	0.5	0.5	0.5	0.5	0.5
Connector Dependent Loss	Max.	dB	0.2	0.2	0.2	0.2	0.2	0.2
Operating Wavelength	Min.-Max.	nm	1250 ~ 1650
Return Loss	Min.	dB	55
Directivity	Min.	dB	55
Operating Temperature		°C	-40 ~ + 85
Storage Temperature		°C	-40 ~ + 85
Maximum Input Power	Max.	mW	500
Fiber Type			ITU G.652D or G.657A

Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have detail requirements.

2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order quantity.

3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on customer's account.

4. How about your price?
Otop: We are supplying products with very competitive price based on good performance.

5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce
