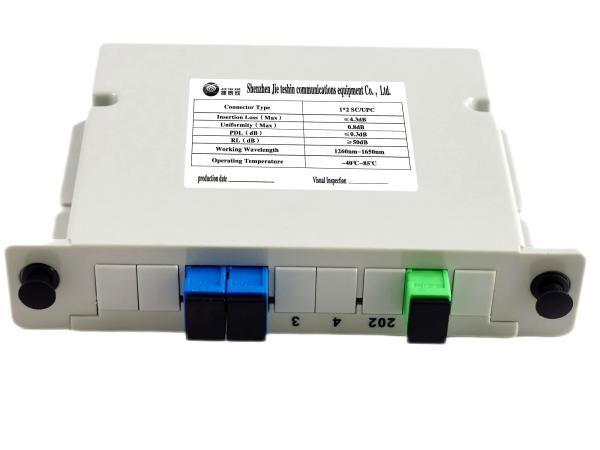

Single Mode 1x2 SC UPC Fiber Optic Splitter low insertion loss
Description
PLC (Planar Lightwave Circuit) splitter is based on planar
lightwave circuit technology and provides a low cost light
distribution solution with small form factor and high reliability.
We provides a various of 1×N and 2×N PLC splitters, including 1×2
to 1×64 and 2×2 to 2×64 Mini Plug-in type fiber PLC splitters. They
are all with superior optical performance, high stability and high
reliability to meet various application requirements.
Application:
- Fiber to the point (FTTX)·
- Fiber to the home (FTTH)
- Passive optical networks(PON, GEPON)
- Local area networks (LAN)
- Cable television (CATV)
- Test Equipment
Advantages:
1. Low insertion loss and PDL;
2. High channel number;
3. Compact size;
4. High reliability;
5. Wide operating wavelength and temperature range;
6. Excellent channel uniformity;
7.Excellent Mechanical Stability
Specifications
Type | 1x2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2x2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
Operating wavelength(nm) | 1260-1650 |
Insertion loss (dB) | Typical | 4.1 | 7.2 | 10.0 | 13.0 | 16.5 | 20.5 | 4.0 | 7.3 | 10.5 | 13.5 | 17.0 | 20.5 |
Maximum | 4.3 | 7.5 | 10.7 | 13.9 | 17.2 | 22.0 | 4.2 | 7.6 | 10.8 | 14.0 | 17.5 | 22.0 |
Uniformity (dB) | Typical | 0.4 | 0.5 | 0.6 | 1.0 | 1.0 | 2.5 | 0.6 | 0.8 | 1.0 | 1.5 | 2.0 | 2.0 |
Maximum | 0.6 | 0.8 | 1.0 | 1.4 | 1.6 | 2.5 | 0.8 | 1.0 | 1.5 | 2.0 | 2.5 | 2.5 |
Polarization Dependent Loss (dB) | Typical | 0.1 | 0.1 | 0.15 | 0.2 | 0.2 | 0.2 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 |
Maximum | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 |
Wavelength dependent loss (dB) | Typical | 0.1 | 0.1 | 0.15 | 0.3 | 0.3 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 |
Maximum | 0.2 | 0.3 | 0.3 | 0.5 | 0.5 | 0.2 | 0.2 | 0.2 | 0.3 | 0.5 | 0.5 | 0.5 |
Return loss (dB) | Minimum | ≥50 |
Directivity (dB) | Minimum | ≥50 |
Operating temperature (℃) | -40℃ to 85℃ |
Storage temperature (℃) | -40℃ to 85℃ |
Optical fiber type | SMF-28 Or customer required |
Optical fiber length (m) | 1M or customize |
We can produce many serials of PLC splitters including:
1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X4, 2X8, 2X16, 2X32, 2X64 with
following package
Bare Fiber Optic Coupler
Blockless Fiber Optical Splitter
ABS box Fiber Optic Splitter
Pallet Type Optical Fiber Splitter
Rack Mount Optical Fiber Coupler
Wall Mount Fiber Optic Coupler
Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have
detail requirements.
2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order
quantity.
3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on
customer's account.
4. How about your price?
Otop: We are supplying products with very competitive price based
on good performance.
5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are
customized. Our own logo and own desig
