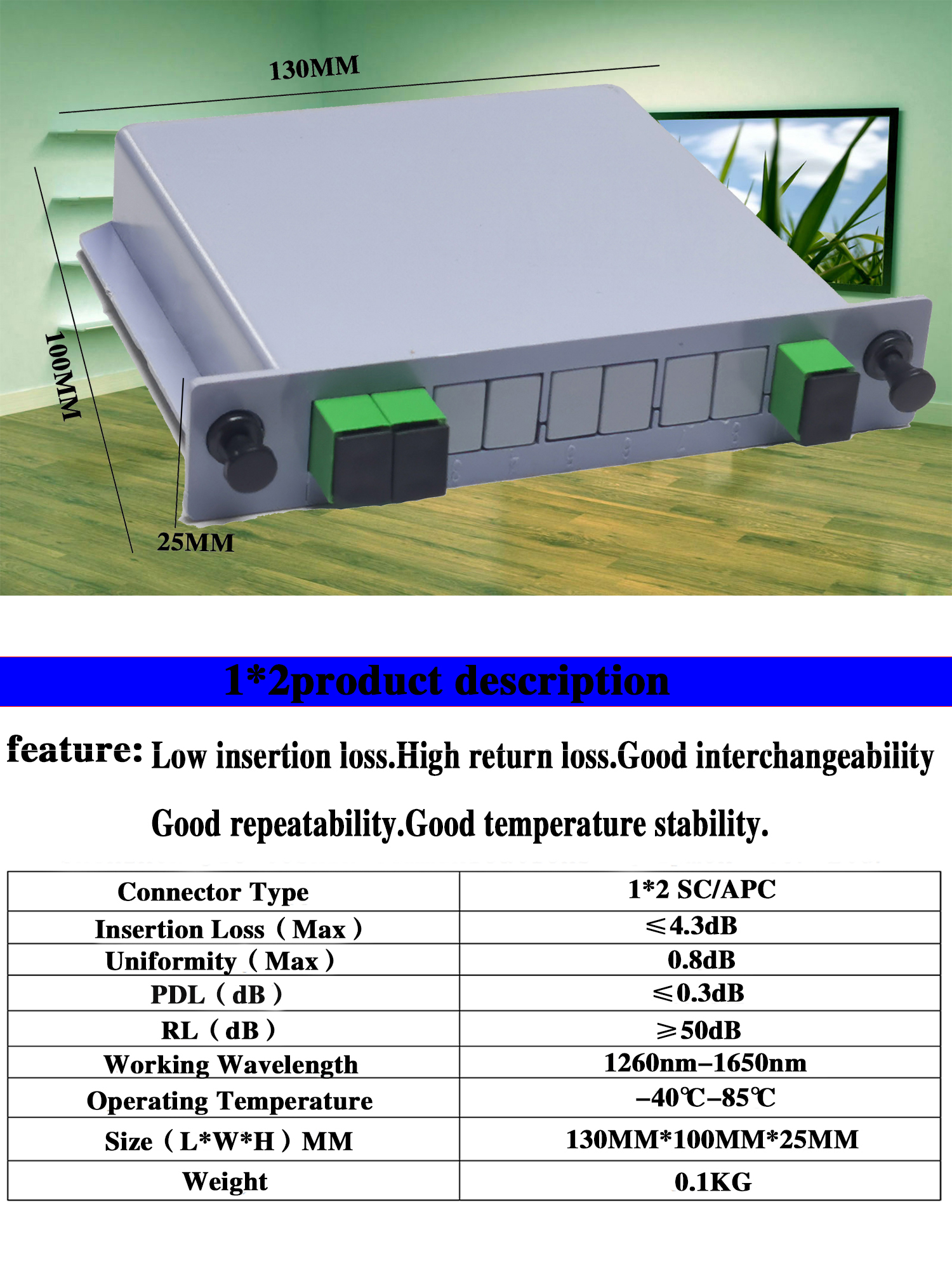

High reliability 0.9MM 2.0MM 1x2 SC APC PLC Fiber Splitter FTTX
FTTH
Description
PLC Fiber optic splitter is a micro-optical element using
photolithographic techniques to form optical waveguide at medium or
semiconductor substrate for realizing branch distribution function.
Fiber splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8,
1x12, 1x16, 1x18, 1x32 and 1x64 configurations with single mode or
multimode fiber and we offer all type connectors of
pre-connectorized like SC, FC, ST, LC etc.
Application:
- Fiber to the point (FTTX)
- Fiber to the home (FTTH)
- Passive optical networks(PON, GEPON)
- Local area networks (LAN)
- Cable television (CATV)
- Test Equipment
Advantages:
1. Low insertion loss and PDL;
2. High channel number;
3. Compact size;
4. High reliability;
5. Wide operating wavelength and temperature range;
6. Excellent channel uniformity;
7.Excellent Mechanical Stability
Specifications
| Type | 1x2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2x2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| Operating wavelength(nm) | 1260-1650 |
| Insertion loss (dB) | Typical | 4.1 | 7.3 | 10.0 | 13.0 | 16.5 | 20.5 | 4.0 | 7.3 | 10.5 | 13.5 | 17.0 | 20.5 |
| Maximum | 4.3 | 7.5 | 10.7 | 13.9 | 17.2 | 22.0 | 4.2 | 7.6 | 10.8 | 14.0 | 17.5 | 22.0 |
| Uniformity (dB) | Typical | 0.4 | 0.5 | 0.6 | 1.0 | 1.0 | 2.5 | 0.6 | 0.8 | 1.0 | 1.5 | 2.0 | 2.0 |
| Maximum | 0.8 | 0.8 | 1.0 | 1.4 | 1.6 | 2.5 | 0.8 | 1.0 | 1.5 | 2.0 | 2.5 | 2.5 |
| Polarization Dependent Loss (dB) | Typical | 0.1 | 0.1 | 0.15 | 0.2 | 0.2 | 0.2 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 |
| Maximum | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 |
| Wavelength dependent loss (dB) | Typical | 0.1 | 0.1 | 0.15 | 0.3 | 0.3 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 |
| Maximum | 0.2 | 0.3 | 0.3 | 0.5 | 0.5 | 0.2 | 0.2 | 0.2 | 0.3 | 0.5 | 0.5 | 0.5 |
| Return loss (dB) | Minimum | ≥50 |
| Directivity (dB) | Minimum | ≥50 |
| Operating temperature (℃) | -40℃ to 85℃ |
| Storage temperature (℃) | -40℃ to 85℃ |
| Optical fiber type | SMF-28 Or customer required |
| Optical fiber length (m) | 1M or customize |
We can produce many serials of PLC splitters including:
1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X4, 2X8, 2X16, 2X32, 2X64 with
following package
Bare Fiber Optic Coupler
Blockless Fiber Optical Splitter
ABS box Fiber Optic Splitter
Pallet Type Optical Fiber Splitter
Rack Mount Optical Fiber Coupler
Wall Mount Fiber Optic Coupler
Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have
detail requirements.
2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order
quantity.
3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on
customer's account.
4. How about your price?
Otop: We are supplying products with very competitive price based
on good performance.
5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are
customized. Our own logo and own desig
