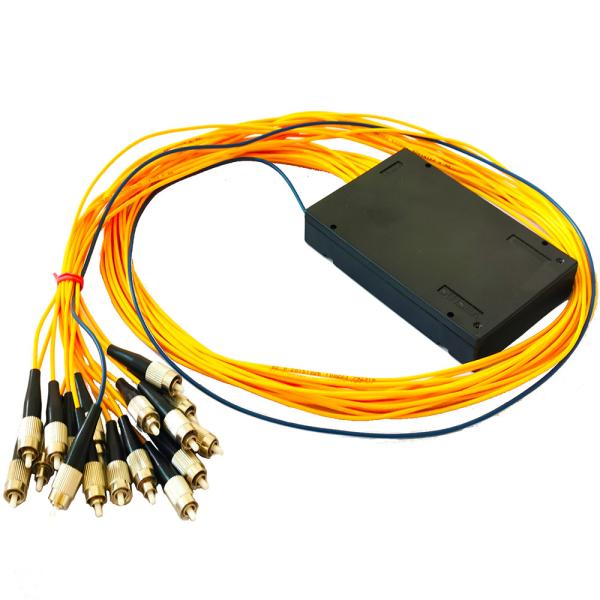

FC UPC 1X16 Fiber Optic PLC Splitter 1260nm-1650nm Low Polarization
Dependent Loss
Details
Fiber Optic splitter is fabricated by using silica optical
waveguide technology. It features wide operating wavelength range,
good channel-to-channel uniformity, high reliability and small
size, and is widely used in PON networks to realize optical signal
power management. We provide a whole series of 1 x N and 2 x N
splitters that are tailored for specific applications. All products
meet Telcordia 1209 and 1221 reliability requirements and are
certified by TLC for network development requirement.
Feature:
• Total enclosed structure, be in nice shape
• Material: PC+ABS, wet proof , waterproof, anti--aging
• Clamping for feeder cable and drop cable, fiber splicing ,
fixation, storage, distribution...all in one
• Cable, pigtail , patch cord are running through own path without
disturbing each other, cassette type SC adapter installation, easy
to maintain and extend the capacity
• Distribution panel can be flipped up, feeder cable can be placed
in a cup-joint way, easy for maintenance and installation.
Applications:
- Fiber optical communication system
- Fiber optical sensors
- CATV System
- LAN System
- WAN System
Performance:
1.Fire-retardant(availble), waterproof, shock-proof, breakage-proof
2.Protect the external cable from stretching, distortion, and other
physical effects
3.Used under -35 °C - +60 °C natural environment.
4.Good sealing performance
Specification:
| 1 1xN (with connector) |
| (Number of Channels) | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| (Operating Wavelenth) | 1260 to 1650 |
| P Level Insertion Loss | 4 | 7.4 | 10.5 | 13.7 | 17 | 20.3 | 4.4 | 7.6 | 10.8 | 14.1 | 17.4 | 20.7 |
| S Level Insertion Loss | 4.2 | 7.6 | 10.7 | 14 | 17.3 | 20.7 | 4.6 | 7.9 | 11.2 | 15 | 18.1 | 21.7 |
| (Uniformity) | 0.4 | 0.6 | 0.8 | 1 | 1.2 | 1.6 | 0.8 | 1 | 1.2 | 1.5 | 1.8 | 2 |
| (PDL) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| (Return Loss) | more than 55 |
| (Directivity) | more than 55 |
| (Type of fiber) | ITU G657A |
| (Operating temperature) | -40 to 85 |
PLC
Splitte | Port Type | Cable Type | Fiber Length | Connector Type | Package Style |
1*4
1*8
1*16
1*32
1*64
2*32
Others Specify | 0.25mm Bare fiber
Ribbon Fiber
Fan-out with 0.9mm Loose Tube
2.0mm Cable
3.0mm Cable | 1 meter
1.5 meter
specify | FC/APC
FC/PC
SC/APC
SC/PC
ST/UPC
LC/APC
Others Specify | Stainless steel sleeve
Plastic Module
19 1U Rack Mount
Others Specify |
|
|
|
|
|
|
|
PRODUCT SHOW:
Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have
detail requirements.
2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order
quantity.
3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on
customer's account.
4. How about your price?
Otop: We are supplying products with very competitive price based
on good performance.
5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are
customized. Our own logo and own design are welcome. We will
produce
