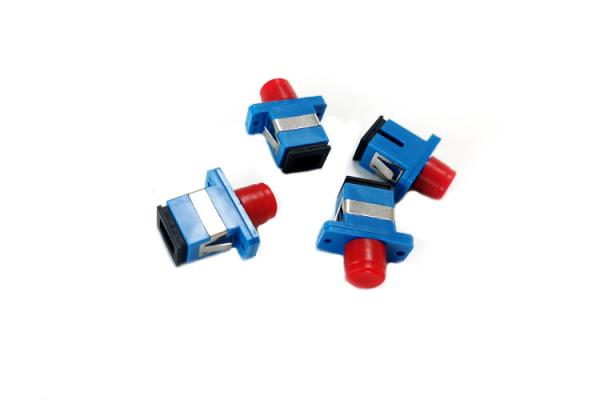

APC UPC SM SC to FC fiber coupler hybrid flange plastic adapter
Description:
Optical fiber adapters are the most widely used optical passive
components in optical fiber communication systems. Most optical
fiber adapters are composed of three parts: two optical fiber
connectors and a coupler. Two optical fiber connectors are
installed into the two optical fiber tail ends; the coupler acts as
an alignment sleeve. In addition, the couplers are mostly equipped
with metal or non-metal flanges to facilitate the installation and
fixation of the connectors.
Both ends of the fiber optic adapter can be inserted into fiber
optic connectors of different interface types to realize the
conversion
between different interfaces such as FC, SC, ST, LC, MTRJ, MPO,
E2000, etc. It is widely used in optical fiber distribution frames
(ODF),
optical fiber communication equipment, Instruments, etc., superior
performance, stable and reliable.
Features:
Low insertion loss
Simplex or duplex
Good exchangeability and repeatability
High prcision alignment
Durability >1000 times
Use connect PC,UPC,SPC,APC polished SC Fiber Optic Connectors
Application:
CATV networks
Local Area Network
Instrumentation
Telecommunication
Adapter Panel
ODF Frame
| Project | Specifications |
| Applicable connector type | FC,ST,SC,LC,MU,MTRJ,ST-SC,FC-SC,ST-FC |
| Connector fiber type | Single mode | Multimode |
| Test wavelength | 1310nm,1550nm | 850nm,1300nm |
| Insertion loss | Typical value: ≤0.15dB
Maximum value: ≤0.20dB | Typical value: ≤0.15dB
Maximum value: ≤0.20dB |
| Repeatability | ≤0.10dB |
| Interchangeability | ≤0.20dB |
| Pluggable performance | Change in loss after 1000 insertions
and removals≤0.20dB |
| Number of channels | Single core, dual core, 4 core |
| Frame material | Metal or plastic |
| Sleeve material | Ceramic or metal |
| Operating temperature | -20℃to +70℃ |
| storage temperature | -40℃to +85℃ |

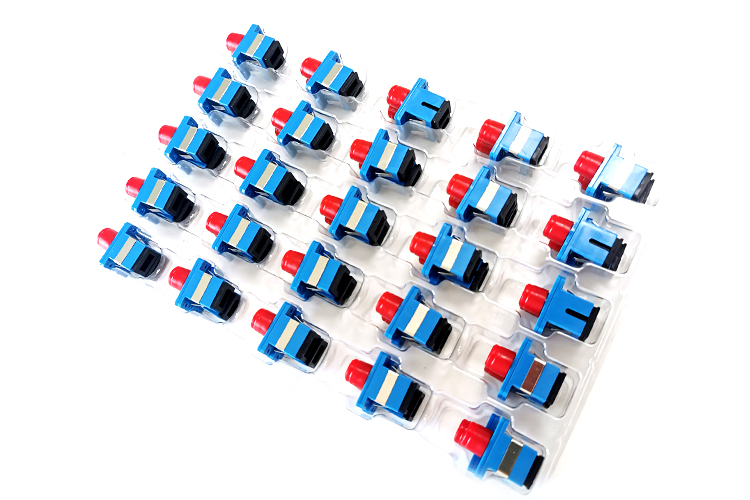

product show:
Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have
detail requirements.
2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order
quantity.
3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on
customer's account.
4. How about your price?
Otop: We are supplying products with very competitive price based
on good performance.
5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are
customized. Our own logo and own design are welcome. We will
produce
