FTTX System Fiber Cable Splitter 1X8 SC UPC Operating Wavelength
1310/1490/1550nm
Description:
Fiber Optic splitter is fabricated by using silica optical
waveguide technology. It features wide operating wavelength range,
good channel-to-channel uniformity, high reliability and small
size, and is widely used in PON networks to realize optical signal
power management. We provide a whole series of 1 x N and 2 x N
splitters that are tailored for specific applications. All products
meet Telcordia 1209 and 1221 reliability requirements and are
certified by TLC for network development requirement.
Feature:
Excellent mechanical
High reliability and stability
Low polarization dependent loss
Good uniformity and low insertion loss
Application:
FTTX system
Test equipment
Local area networks
Passive optical networks
| Specification |
| Parameters | 1x2 | 2x2 | 1x4 | 2x4 | 1x8 | 2x8 | 1x16 | 1x32 |
| Operating Wavelength(nm) | 1260~1650 |
| Insertion loss (db)(P/S Grade) | 3.8/4 | 4.0/4.2 | 7.1/7.3 | 7.6/7.8 | 10.2/10.5 | 11.0/11.2 | 13.5/13.7 | 16.5/16.9 |
| Loss Uniformity(db) | 0.4 | 0.6 | 0.6 | 1 | 0.8 | 1.2 | 1.2 | 1.5 |
| Return loss (db)(P/S Grade) | 55/50 |
| Polarization Dependent loss(db) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.3 | 0.25 | 0.3 |
| Directivity(db) | 55 |
| Wavelength Dependent Loss(db) | 0.3 | 0.3 | 0.3 | 0.4 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 |
| Operating Temperature(℃) | -40~+85 |
| Storage Temperature (℃) | -40~+85 |
PLC | Port Type | Cable Type | Fiber Length | Connector Type | Package Style |
Splitte | 1*4 | 0.25mm Bare fiber | 1 meter | FC/APC | Stainless steel sleeve |
| 1*8 | Ribbon Fiber | 1.5 meter | FC/PC | Plastic Module |
| 1*16 | Fan-out with 0.9mm Loose Tube | specify | SC/APC | 19 1U Rack Mount |
| 1*32 | 2.0mm Cable |
| SC/PC | Others Specify |
| 1*64 | 3.0mm Cable |
| ST/UPC |
|
| 2*32 |
|
| LC/APC |
|
| Others Specify |
|
| Others Specify |
|

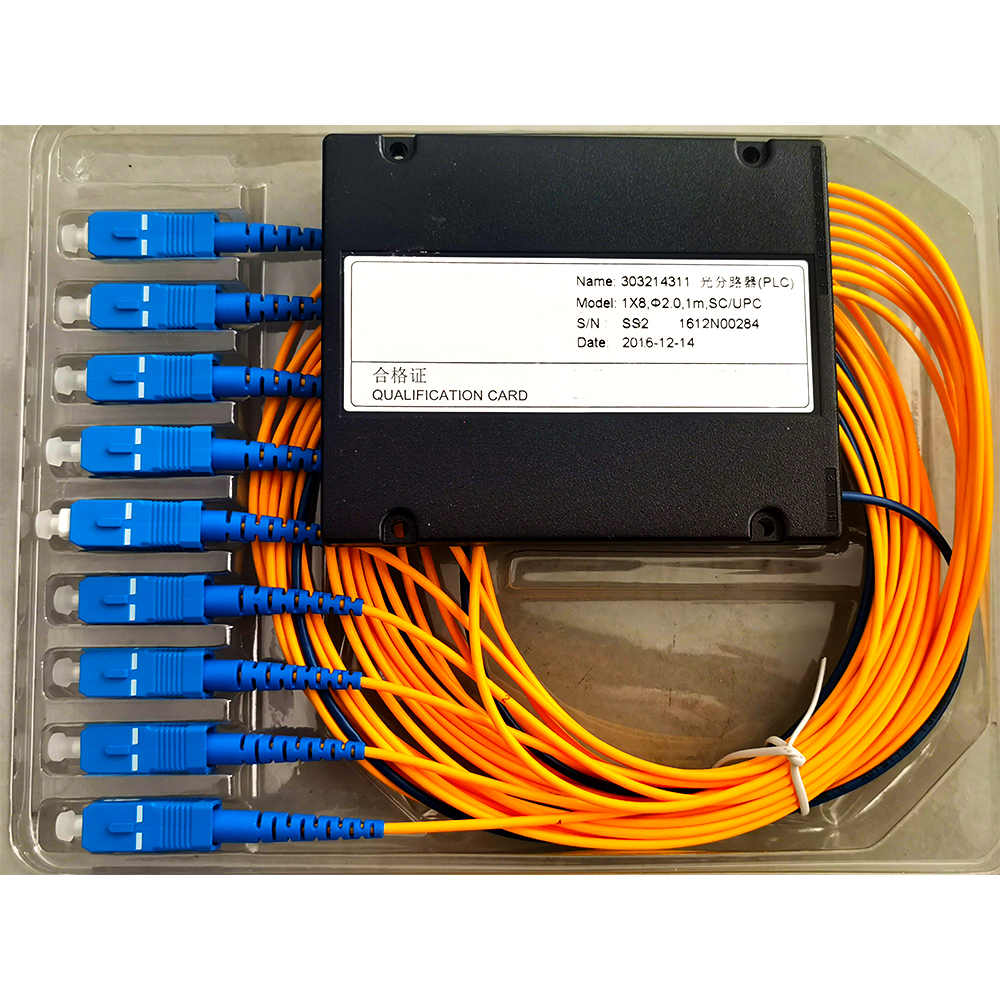

PRODUCT SHOW:
Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have
detail requirements.
2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order
quantity.
3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on
customer's account.
4. How about your price?
Otop: We are supplying products with very competitive price based
on good performance.
5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are
customized. Our own logo and own design are welcome. We will
produce according to your requirment and description;
