OM3 850nm /1300nm 1X2 FC- FC APC-UPC Mini Fiber Splitter 0.9mm 1M

Ask Lasest Price
Brand Name :	JIE TAI XIN
Model Number :	JT-3007-1/2FU-05
Certification :	ISO 9001
Price :	Negotiable
Payment Terms :	30% deposit , Balance due within 7 days from date of shipment bill of lading
Supply Ability :	50000 Monthly Output
Delivery Time :	7-10 Days

Add to Cart

Product Details
Company Profile

OM3 850nm /1300nm 1X2 FC- FC APC-UPC Mini Fiber Splitter 0.9mm 1M

APC UPC OM3 1X2 FC to FC MINI PLC fiber splitter multimode
Description of Cable Splitter:

Cable splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. Siemax’ PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.

OM3 Fiber. OM3 fiber comes with an aqua color jacket. Like the OM2, its core size is 50 µm, but the cable is optimized for laser based equipment. OM3 supports 10 Gigabit Ethernet at lengths up to 300 meters.

Features:

Various coupling ratio
High stability and reliability
Compact Size
Low insertion loss
Low excess loss
Low PDL
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209
Applications
Long-Haul Telecommunications
CATV Systems and Fiber Sensors
Local Area Network
Mini size EDFA
Mini size transmitter and receiver module
Optical communication systems
Testing instruments
Specification:

Ordering Information:

FBT Coupler
	Port	Fiber Type	Input	Output	Pigtail Length	Connector
FBT Coupler	0102=1x2 0104=1x4 0108=1x8 0116=1x16 0132=1x32 0164=1x64 0204=2x4 0208=2x8 0216=2x16	1=G652D, 2=G657A	L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter	L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter	05-20=0.5--2.0m, 0=Adapter, X=Others	FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others

Type	1X2 Multimode Standard Fiber Couplers
Central Wavelength (nm)	850 or 1310 or 1550
Grade	P	A
Coupling Ratio (%)	50/50	50/50
Excess Loss (Typical )(dB)	0.5 (0.8)*	0.7 (1.0)*
Maximum Insertion loss (dB)	3.5 (4.0)*	3.7 (4.2)*
Uniformity (Max.) (dB)	0.6	0.8
Directivity (Min.) (dB)	35
Operating Temperature( ° C)	-20 ~ +70(-40 ~ +85 available upon request)
Fiber Type	Corning multimode 50/125, 62.5/125, 100/140 fiber
Fiber Pigtail Length (m)	1m or custom length
Port Configuration	1x2 or 2x2

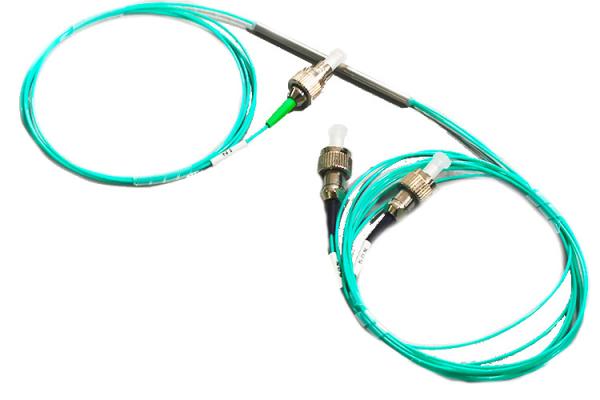

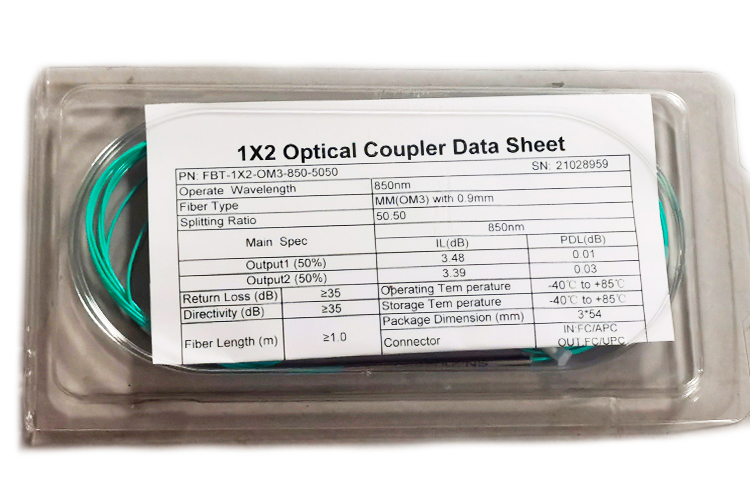

product show:

Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have detail requirements.
2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order quantity.
3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on customer's account.
4. How about your price?
Otop: We are supplying products with very competitive price based on good performance.
5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce
