Single Mode simplex 0.9mm 3m SC APC Fiber Optic Pigtail High return
loss
Description:
Fiber Optic Pigtail is a piece of cable assembled with connectors
only in one side. And the other side has no connectors. Then the
other side is usually spliced with other fiber optic cable. It is
preinstalled in the fiber optic terminal box, ODF, fiber optic
joint closure to connect the equipment. There are single mode and
multimode pigtails, the wavelength of single mode pigtail is
1310/1550nm and the color is yellow in common. If multimode fiber
optic pigtail, the color is orange. We also provide non-jacketed
fiber optic pigtail and jacketed pigtails.
Features:
Low insertion loss
High return loss
Excellent repeatability
Compact and anti-pull design
Precision fiber optic ferrule
High precision exact alignment
IEC Compliant
Telcordia compliant
UPC, PC or APC polished connectors
Material:
Cores: simplex, multi core pigtails (6pack, 8pack, 12pack, 24pack,
48pack)
Cable Jacket: PVC, LSZH, OFNR, OFNP
Cable outer diameter: 0.9mm, 2.0mm, 3.0mm
Fiber Type: SM (9/125um), OM1(62.5/125um), OM2(50/125um), OM3, OM4
Connector Type: FC, SC, ST, LC, MU, MTRJ, MPO, E2000, SMA, FDDI,
D4, DIN
End face type: UPC, APC
Applications:
Local area networks, wide area networks
Optical Switch interface connections
Gigabit Ethernet
CATV and WAN
Testing Instrument, active device connection
Premise Installations
Telecommunication Networks
Fiber to the home
Specifications:
| Mode | Single mode | Multimode |
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Return Loss | ≥55dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB |
| Salt Spray | ≤0.1dB |
| Repeatability | ≤0.1dB (1000 times) |
| Vibration | ≤0.2dB (550Hz 1.5mm) |
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) |
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) |
| Apex Offset | 0μm ~ 50μm |
| Radius of Curvature | 7mm ~ 25mm |
Ordering Information:
| Fiber mode | Singlemode (9/125um G652D/G657/G655) or Multimode (62.5/125um
OM1,OM2,OM3,OM4) |
| Fiber count | Simplex,Duplex or 4, 6, 8, 12, 24, 48 cores are available |
| Cable diameter | 0.9mm/1.2mm/1.6mm/1.8mm/2.0mm/3.0mm etc. |
| Cable jacket | PVC,LSZH,OFNR,OFNP |
| Cable color | SM-Yellow, OM1/OM2-Orange, OM3-Aqua green, OM4-Purple or OEM color |
| Cable length(M) | Customized |
| Connector type | LC, SC, FC, ST, MU, MTRJ, MPO, SMA, D4 and others |
| Polish/Endface | PC, UPC, APC |
| Housing/boot color | Standard(Blue/Beige/Green) or OEM color |
| Packing | Multi-piece or one piece type available,Normally polybag+carton
box, can be customized |

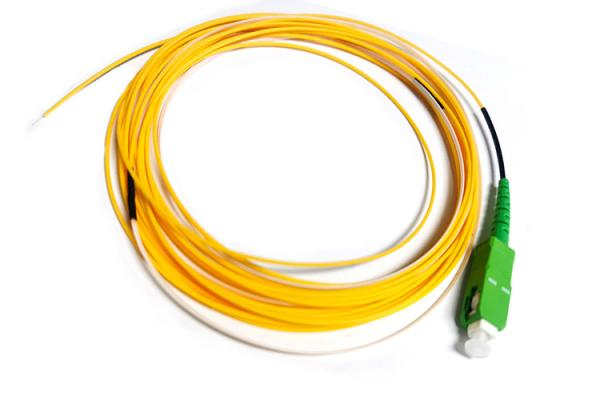

product show:
Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have
detail requirements.
2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order
quantity.
3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on
customer's account.
4. How about your price?
Otop: We are supplying products with very competitive price based
on good performance.
5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are
customized. Our own logo and own design are welcome. We will
produce
