Product Description
The distribution box can be used as a termination point for the
feeder cable to connect with drop cable in FTTx communication
network system. The fiber splicing, splitting, distribution can be
done in this box, and meanwhile it provides solid protection and
management for the FTTx network building.
FTTH Box Our terminal box is available for the distribution and
terminal connection for various kinds of optical fiber system,
especially suitable for mini-network terminal distribution, in
which the optical cables, patch cores or pigtails are connected.
Characteristics
1) Water-proof design with IP-66 Protection level.
2) Integrated with splice cassette and cable management rods.
3) Manage fibers in a reasonable fiber radius condition.
4) Easy to maintain and extend the capacity.
5) Fiber bend radius control more than 40mm
6) Suitable for the fusion splice or mechanical splice
7) 1*8 Splitter can be installed as an option.
8) Efficient cable management
9) 8 ports cable entrance for drop cable.
Features:
1. This box could be used for wall-mounted applications;
2. Suit for Outdoor & Indoor.
3. Waterproof, Anti-UV, Ultra violet resistant and rainfall
resistant.
4. Light weight, small cubage, small installation size, reliable
sealing.
5. Could be connected FTTH Drop cables inside.
6. The base and cover of the box adopts “self-clip”
&”screw-clip” two times lock method, which is better to use in
outdoor for high sealing and waterproof.
Specification
| ITEM | Fiber Optic Distribution Box |
| Dimensions(mm) | LxWxH 210*175*48mm |
| Cable input capacity | Max. ports (Max. dia : 16 mm) |
| Cable output capacity | Max. ports (Max. dia : 16mm) |
| Max.capacity | 8 cores |
| Opration Temperature | -40°C—+85°C |
| Tensile Strengh | ≥450Kg/c㎡ |
| Impact Strengh | 35Kg cm/cm (nomar temp.) |
| 10Kg cm/cm(-30°C) |
| Flexural Strengh | ≥450Kg/c㎡ |

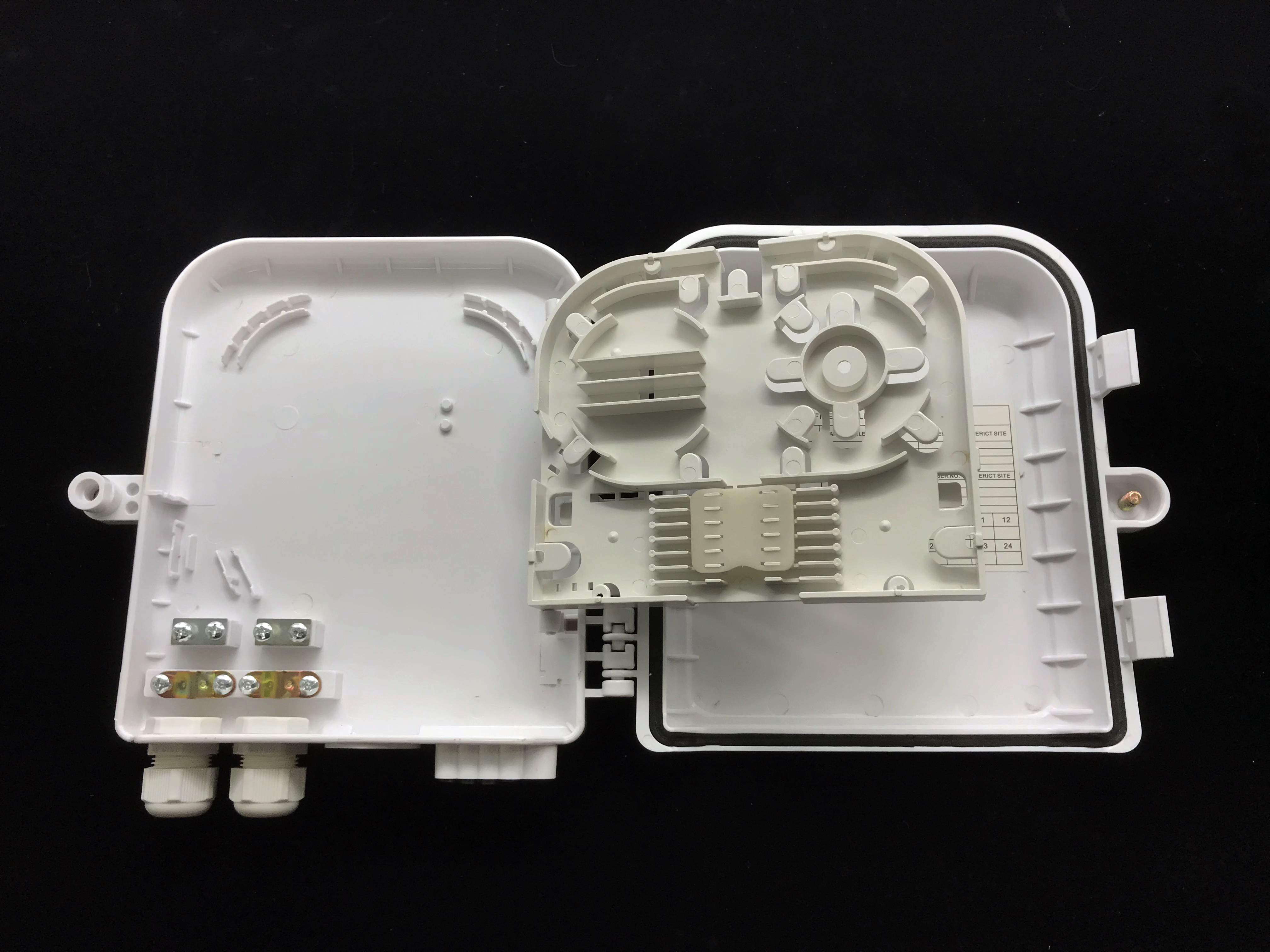

Product Show
