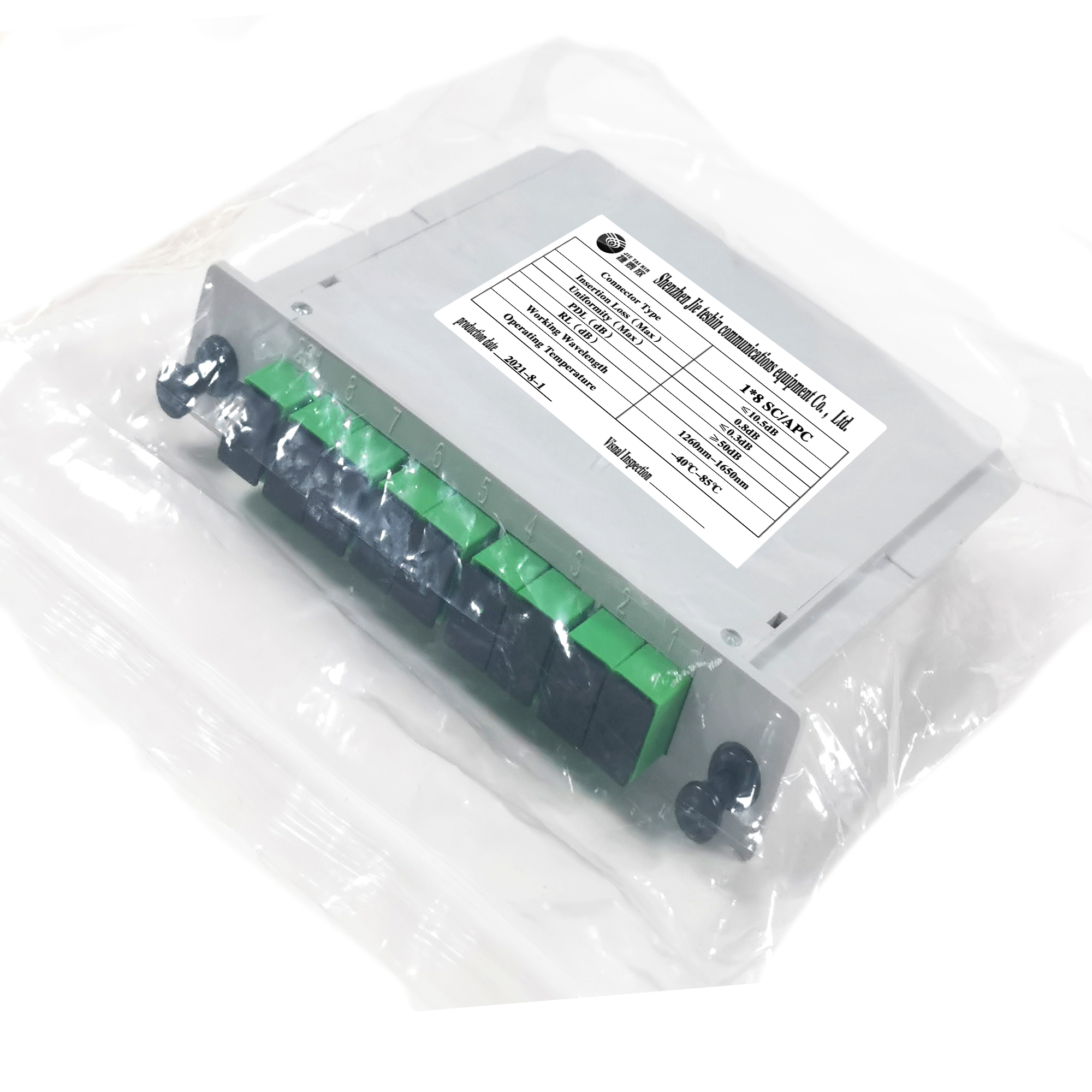

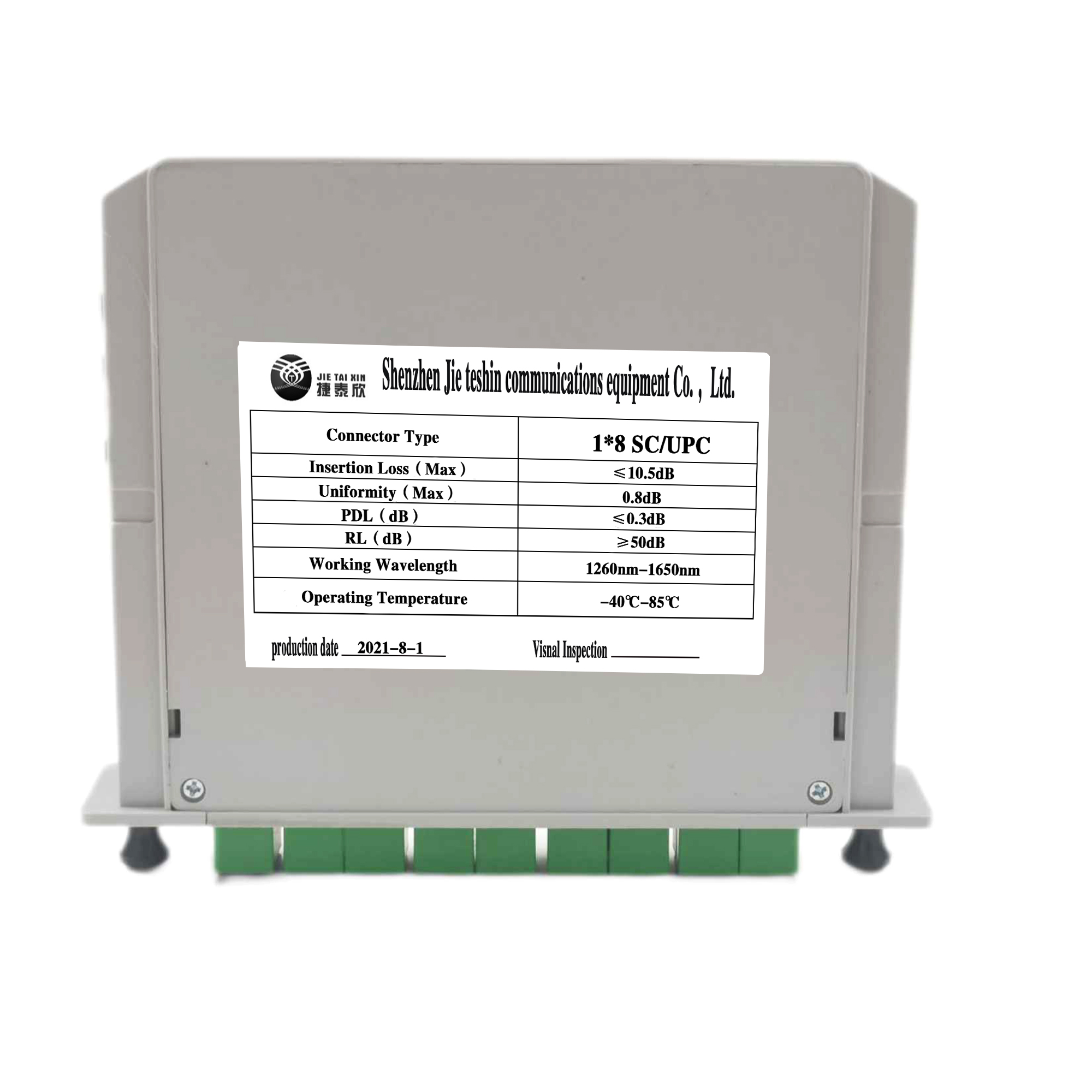

High Durability 1x8 SC APC PLC Fiber Splitter 1260~1650 Low
Insertion Loss
Introduction
PLC Fiber optic splitter is a micro-optical element using
photolithographic techniques to form optical waveguide at medium or
semiconductor substrate for realizing branch distribution function.
Fiber splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8,
1x12, 1x16, 1x18, 1x32 and 1x64 configurations with single mode or
multimode fiber and we offer all type connectors of
pre-connectorized like SC, FC, ST, LC etc.
Characteristics:
- Optional Split Ratio 20/80, 40/60...(50/50 as default.)
- Compact for small application areas like in closure or splice trays
- Wide operating wavelength and temperature range;
- Excellent Environmental & Mechanical Stability
- Qualified Under Telcordia GR-1221 and GR-1209
- Steel tube-compact size
- Low insertion loss and PDL
- Low polarization dependent loss
- High Return Loss
High channel number;
Compact size;
High reliability;
Excellent channel uniformity;
Application:
FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Amplifying, Monitoring System
Test Equipments
Order Information
Local Area Networks (LAN)
CATV Systems
| Specifications: |
| Type | 1x2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2x2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| Operating wavelength(nm) | 1260-1650 |
| Insertion loss (dB) | Typical | 4.1 | 7.2 | 10 | 13 | 16.5 | 20.5 | 4 | 7.3 | 10.5 | 13.5 | 17 | 20.5 |
| Maximum | 4.3 | 7.5 | 10.7 | 13.9 | 17.2 | 22 | 4.2 | 7.6 | 10.8 | 14 | 17.5 | 22 |
| Uniformity (dB) | Typical | 0.4 | 0.5 | 0.6 | 1 | 1 | 2.5 | 0.6 | 0.8 | 1 | 1.5 | 2 | 2 |
| Maximum | 0.6 | 0.8 | 1 | 1.4 | 1.6 | 2.5 | 0.8 | 1 | 1.5 | 2 | 2.5 | 2.5 |
| Polarization Dependent Loss (dB) | Typical | 0.1 | 0.1 | 0.15 | 0.2 | 0.2 | 0.2 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 |
| Maximum | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 |
| Wavelength dependent loss (dB) | Typical | 0.1 | 0.1 | 0.15 | 0.3 | 0.3 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 |
| Maximum | 0.2 | 0.3 | 0.3 | 0.5 | 0.5 | 0.2 | 0.2 | 0.2 | 0.3 | 0.5 | 0.5 | 0.5 |
| Return loss (dB) | Minimum | ≥50 |
| Directivity (dB) | Minimum | ≥50 |
| Operating temperature (℃) | -40℃ to 85℃ |
| Storage temperature (℃) | -40℃ to 85℃ |
| Optical fiber type | SMF-28 Or customer required |
| Optical fiber length (m) | 1M or customize |
We can produce many serials of PLC splitters including:
1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X4, 2X8, 2X16, 2X32, 2X64 with
following package
Bare Fiber Optic Coupler
Blockless Fiber Optical Splitter
ABS box Fiber Optic Splitter
Pallet Type Optical Fiber Splitter
Rack Mount Optical Fiber Coupler
Wall Mount Fiber Optic Coupler
Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have
detail requirements.
2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order
quantity.
3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on
customer's account.
4. How about your price?
Otop: We are supplying products with very competitive price based
on good performance.
5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are
customized. Our own logo and own design are welcome. We will
produce
