Simplex singlemode SC /APC-SC/UPC 3MM 3M Fiber Optic Patch Cable
Excellent Repeatability
Products description
Fiber Optic Patch cords are ultra reliable components featuring low
insertion loss and return loss. They come with your choice of
simplex or duplex cable configuration. Extensive range of fiber
patch cables are terminated with state-of-the-art connectors and
available in any combination of ST, SC, LC and MTRJ with PC, UPC or
APC polish types to meet your standard or custom configurations. Fiber Optic Patch Cord is important of optical network.they have
same or different connectors which are installed on the end of
fiber optic cable. The Fiber Optic Patch Cord series comes with a
comprehensive collection of lengths and connectors to fulfill your
demand for the deployment.
Features
- Operating Temperature: -40℃~85℃
- Excellent Repeat-ability, exchange-ability, wear resistance and
stability
- Good Temperature Stability
- Strong Tensile Performance
- Environmentally Friendly
- High return loss;
- Low insertion loss;
- Good repeatability and and exchangeability;
- Excellent Polished and 100% tested;
Applications:
Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network(OAN)
Premise Installations
Telecommunication and Data processing Networks
Specification
| Type | SM , MM |
| Connector | FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000 |
| Diameter(mm) | 0.9,2.0,3.0 |
| SM PC | MM PC | UPC | APC |
| Insert Loss | ≤0.3dB | ≤0.4dB | ≤0.2dB | ≤0.3dB |
| Return Loss | ≥40dB | ≥50dB | ≥65dB |
| Exchangeability | ≤0.2dB |
| Repeatability | ≤0.2dB |
| Temperature Range(℃) | -40~+85 |
| END FACE TYPE | PC UPC AND APC |
| FIBER TYPE | SM(G652 G655 G657) MM(OM1-OM5) |
| CABLE DIAMETER | 0.9 2.0 3.0 OR CUSTOMIZED(SIMPLEX/ DUPLEX) |
| INSERTION LOSS | ≤0.3DB |
| RETURN LOSS | UPC SM≥50DB APC SM≥60DB PC MM≥35DB |
| REPEATABILITY | ≤0.1 |
| DURABILITY | ≤0.2DB |
| INTERCHANGEABILITY | ≤0.2DB |
| TENSILE STRENGTH | 0.9MM＞5N 2.0/3.0＞70N |
| OPERATING TEMPERATURE | -40~80 |
| STORAGE TEMPERATURE | -40~80 |
| QUTER SHEATH MATERIAL | PVC LSZH PU |
| BENDING RADIUS (STATIC/DYNAMIC) | 10D/20D |
| LENGRTH | CUSTOMIZED |

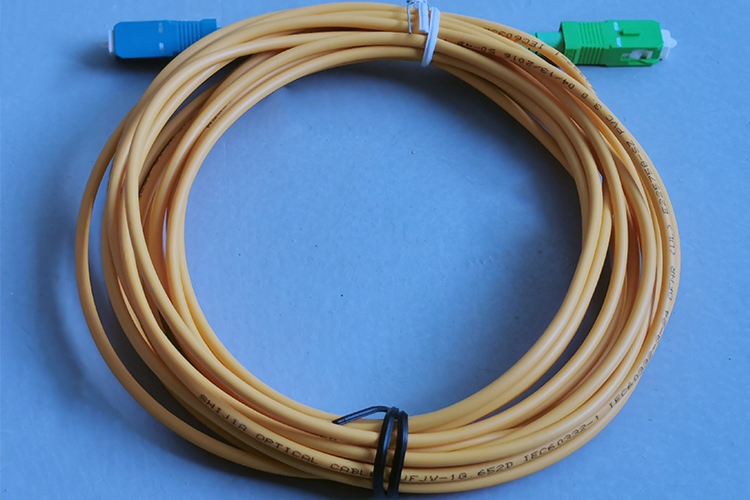

Product Show
Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have
detail requirements.
2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order
quantity.
3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on
customer's account.
4. How about your price?
Otop: We are supplying products with very competitive price based
on good performance.
5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are
customized. Our own logo and own design are welcome. We will
produce
