Single Mode Fiber Optic Patch Cable Simplex 2.0-30M LC LC Type Low Insertion Loss

Products description

Fiber Optic Patch Cord is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

Features:

(1) Ceramic Ferrule;

(2) High return loss;

(3) Low insertion loss;

(4) Good repeatability and and exchangeability;

(5) Excellent Polished and 100% tested;

(6) Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.

Applications:
FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
Active Device Termination
Premise Installations
Telecommunication and Data processing Networks
Video transmission , Data transmission

Specification

Item	Unit	LC/SC/FC/ST Fiber Patch Cord
Item	Unit	SM			MM
Fiber Diameter	um	9/125			65.5/125	50/125
Polishing		PC	UPC	APC	PC	PC
Insertion Loss	dB	≤0.2	≤0.15	≤0.2	≤0.1	≤0.1
Return Loss	dB	≥45	≥50	≥60	-	-
Insert-pull Test	dB	≤0.2	≤0.2	≤0.3	≤0.15	≤0.15
Interchangeability	dB	≤0.1	≤0.1	≤0.15	≤0.1	≤0.1
Temperature Range	℃	-40~+80
Durability(1/Matings)	≥500
Tensile Strength (N)	≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber	9/125um, 50/125um,62.5/125um,ect
Diameter	0.9mm 2.0mm, 3.0mm etc
Cores	Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc

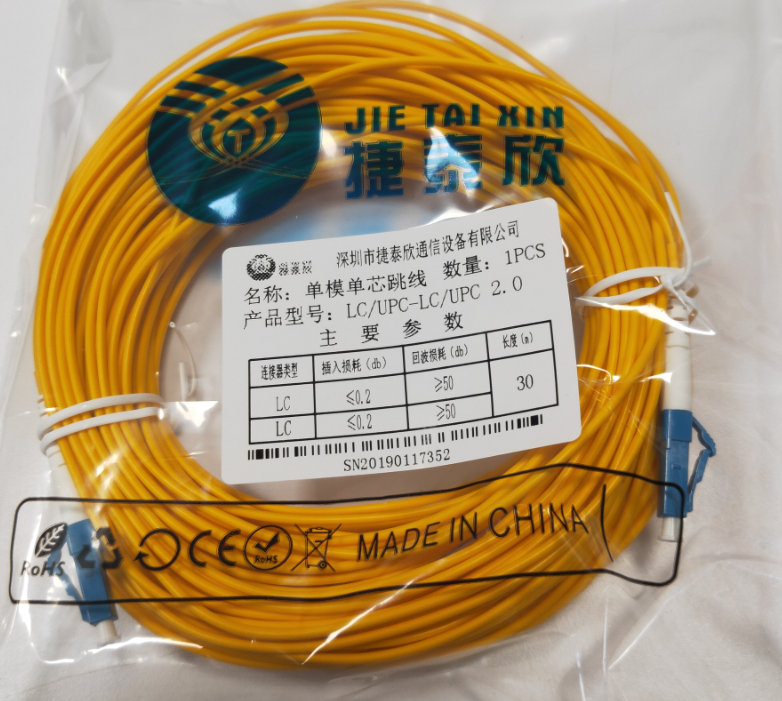

Product Show
