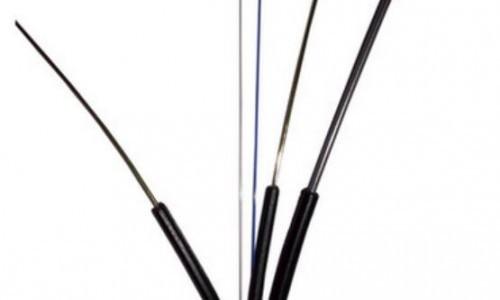

    Wear Resistant FTTH Drop Cable For Communication Equipment OEM Available

    Description

    It’s a kind of patch cord but with drop cable. Indoor FTTH drop cable is used to connect to the end users' homes, widely applied in access networks and FTTH indoor cabling, Special with Fact plate , terminal box, ONU tec.


    With easy accessibility to the fiber and simple installation, FTTH cable can be directly connected to the homes. It is suitable for connecting with communication equipment, and used as access building cable in premises distribution system. The optical fibers are positioned in the center. Two parallel Fiber Reinforce Plastic (FRP) strength members are placed at the two sides. Then, the cable is completed with LSZH sheath.


    Optical Characteristics


    Good mechanical and environmental characteristics.

    Flame retardant characteristics meet the requirements of relevant standard.

    The mechanical characteristics meet the requirements of relevant standard.

    Soft, flexible, easy to lay and splice, and with big capacity data transmission.

    Meet various requirements of market and clients.


    Fiber count


    1/2/4/6/8/12

    Color Of fiber


    Blue Orange Green Brown

    Fiber Type


    G652D/G657A1/G657A2

    Strength member


    Steel wire/FRP/KFRP

    Supporting messenger wire


    1.0MM*x1 steel wire

    Outer sheath


    LSZH Lower smoke zero halogen frame retardant & UV Anti

    Cable Diameter dimensions


    2.0( Height) × 5.0W ± 0.1 mm(width)

    Operation temperature range


    -20 ℃ to + 70 ℃

    Installation temperature range


    -20 ℃ to + 60 ℃

    Transport and storage temperature range


    -20 ℃ to + 70 ℃

    Tension Load (N)


    Short term :800N Long term :500N

    Crush Load(N)


    Long term 1000 N/100mm Short term:2200N/100mm

    Minimal installation bending radius


    30 x OD

    Minimal operation bending radius


    15 x OD

    Cable marking


    The marking length 1meter apart , as required
